INSTALLATION

Easy-Setup

Plug & Play!



An average skilled handyman will need

less the five minutes to get it installed

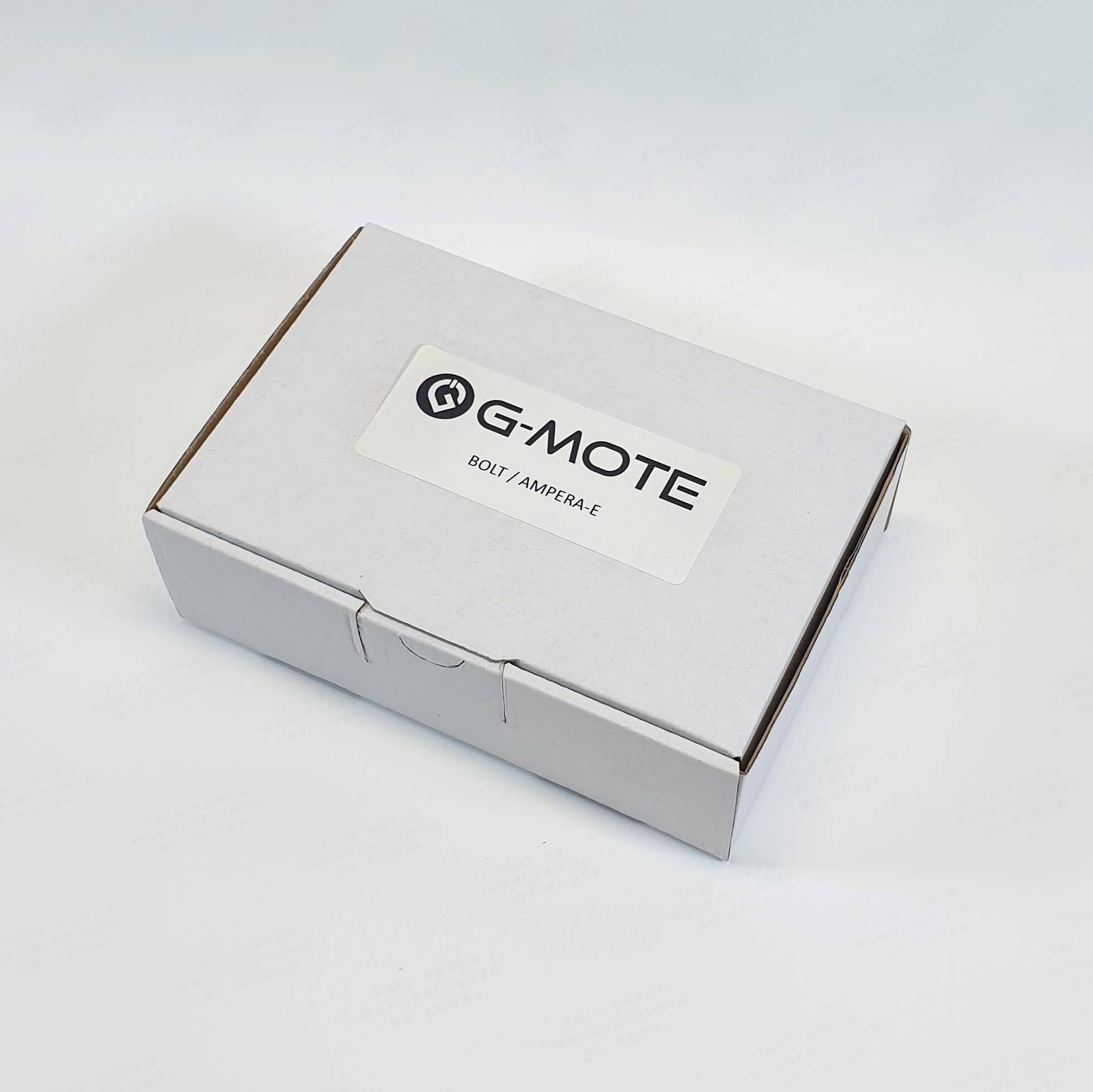

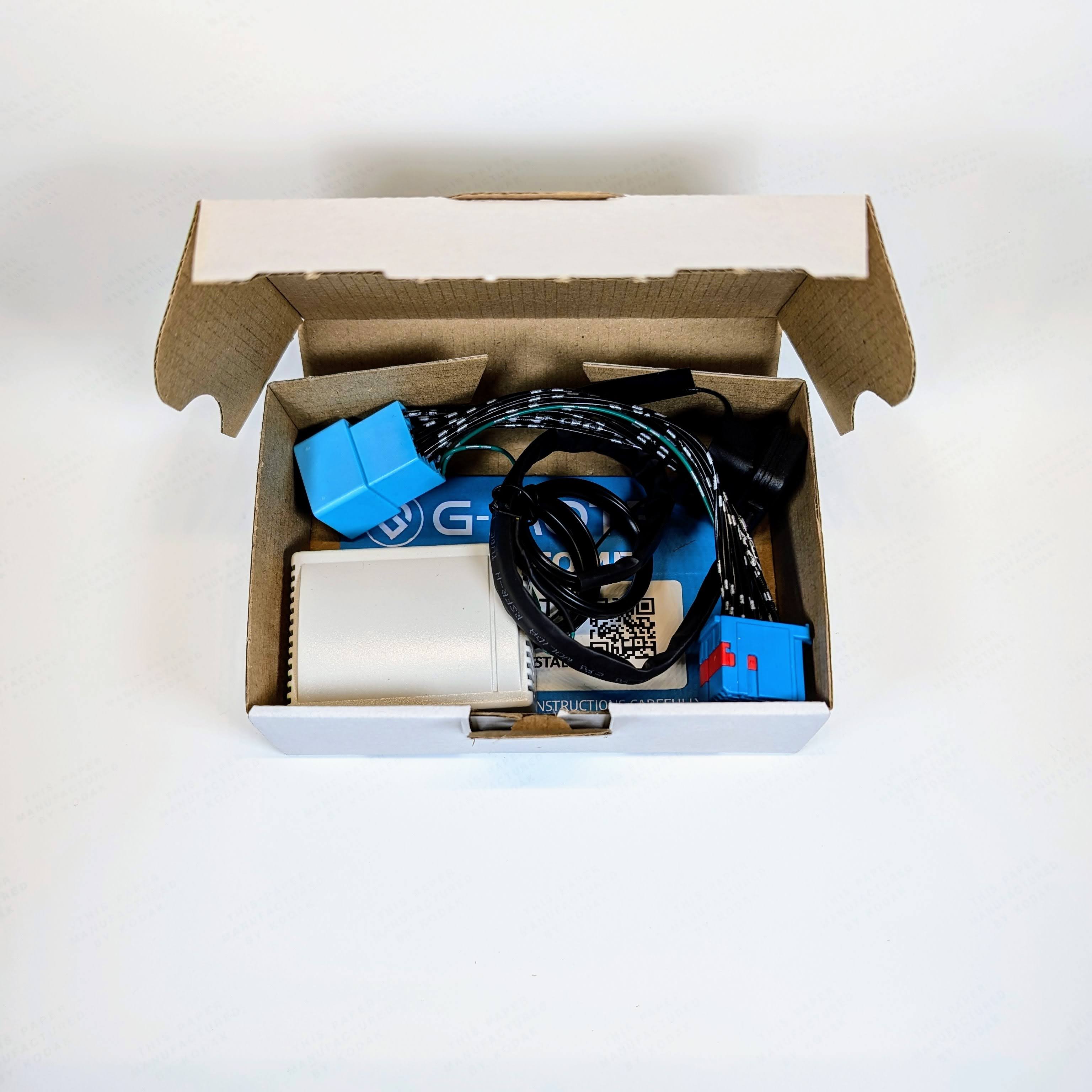

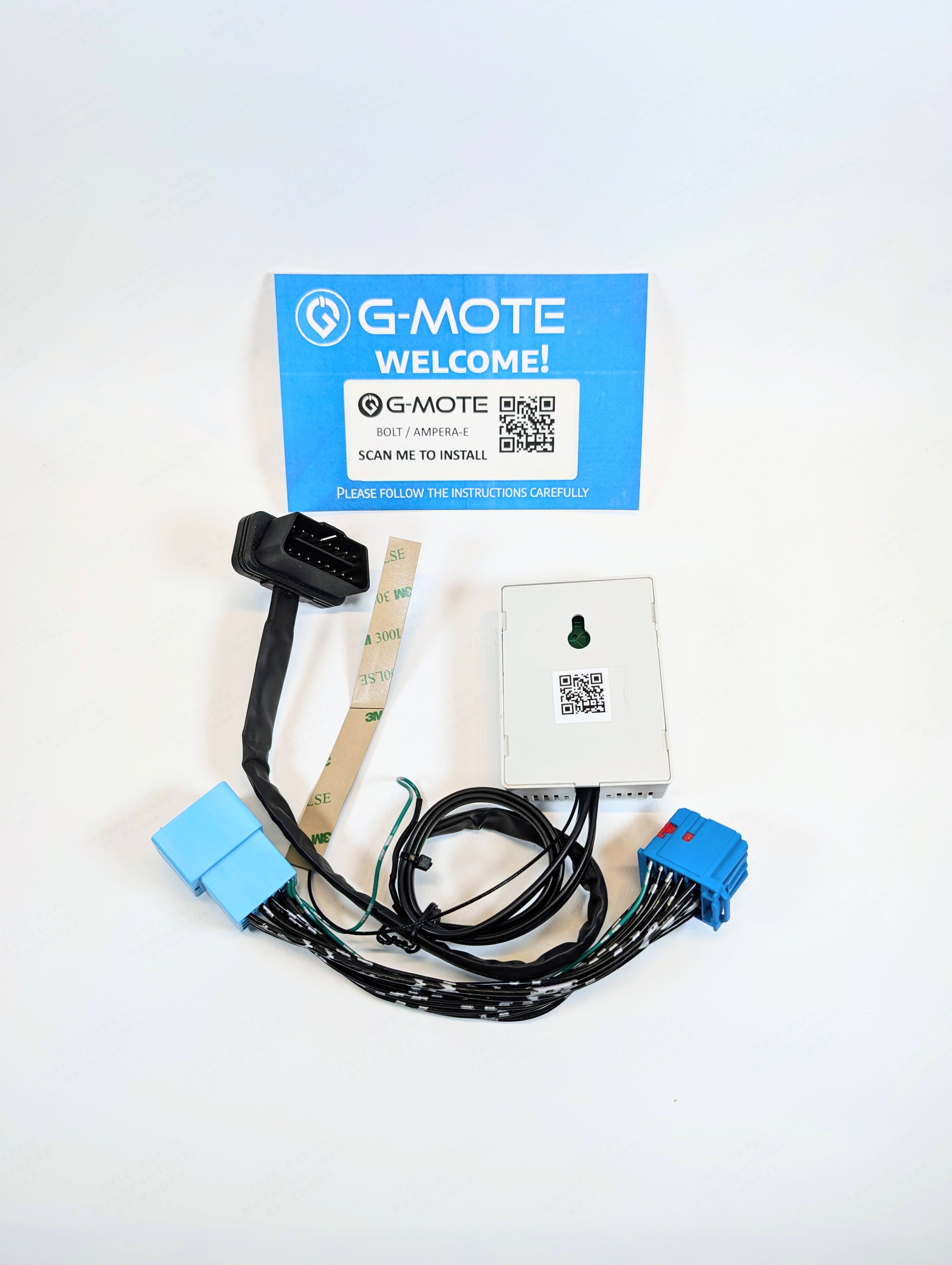

Package-Contents

-G-MOTE module with OBD and connector cable

-Registration document (please store well)

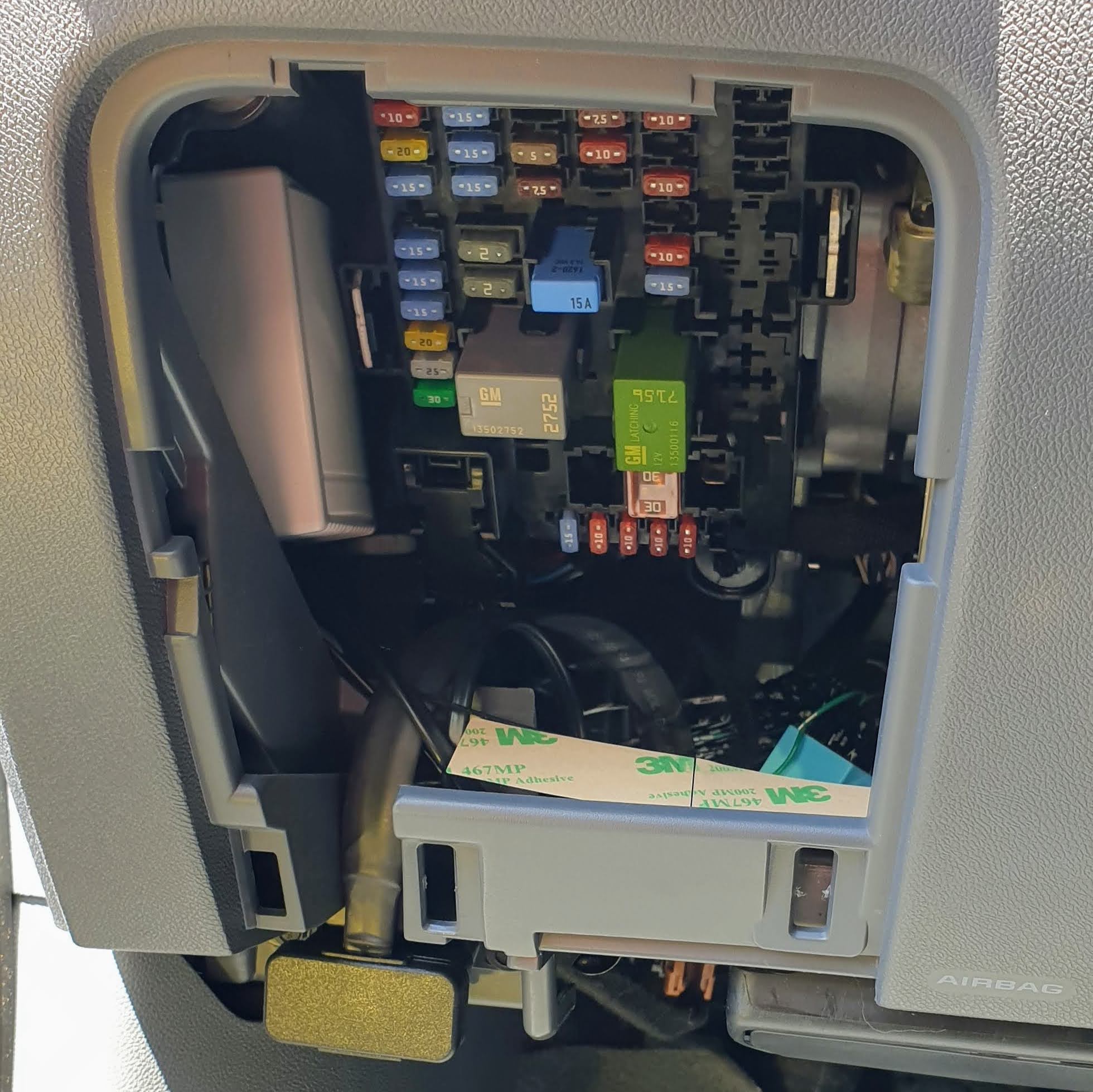

1. Fuse-Box

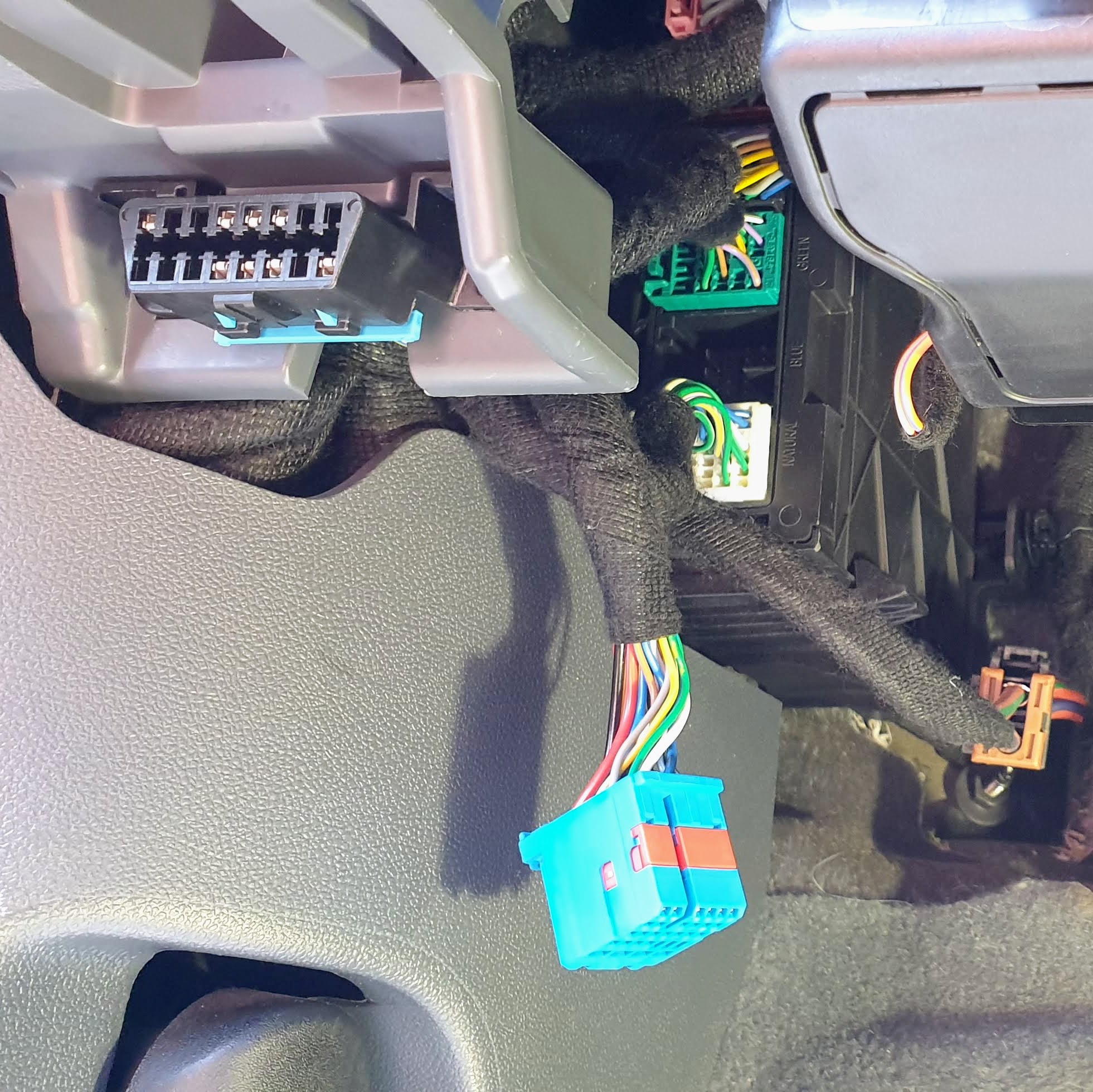

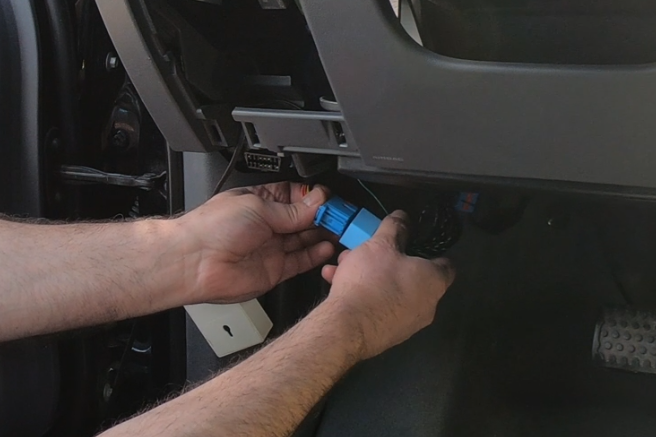

2. Remove Blue Plug

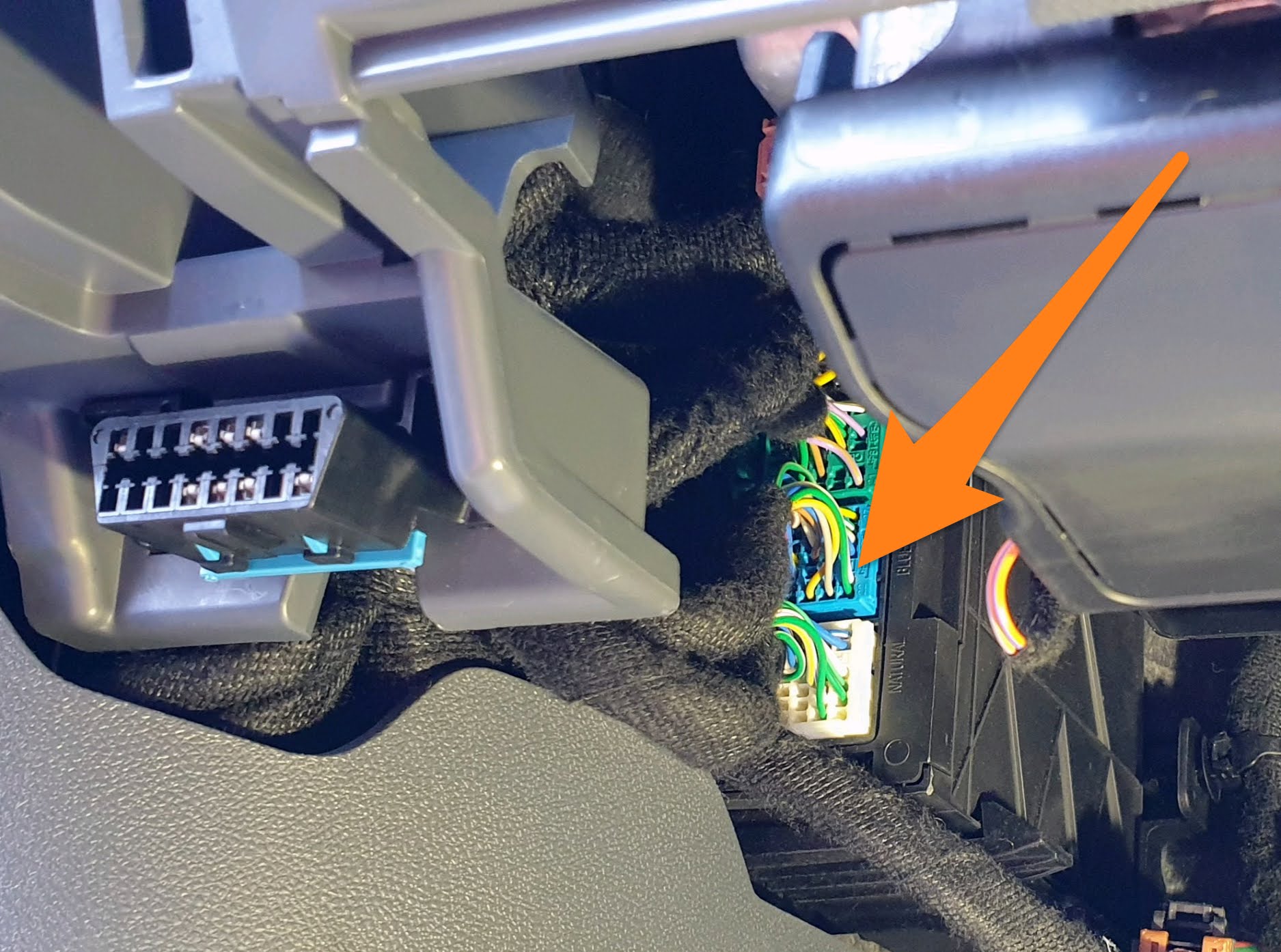

Unlock the blue plug and pull it out of the connection box,

which is located underneath the dash

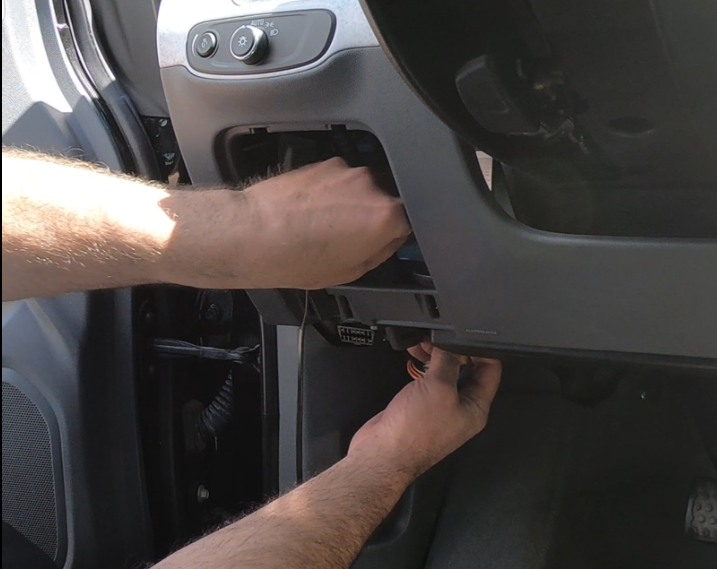

3. Connector Cable

Push the connector cable through the opening of the

fuse box and connect the plugs together

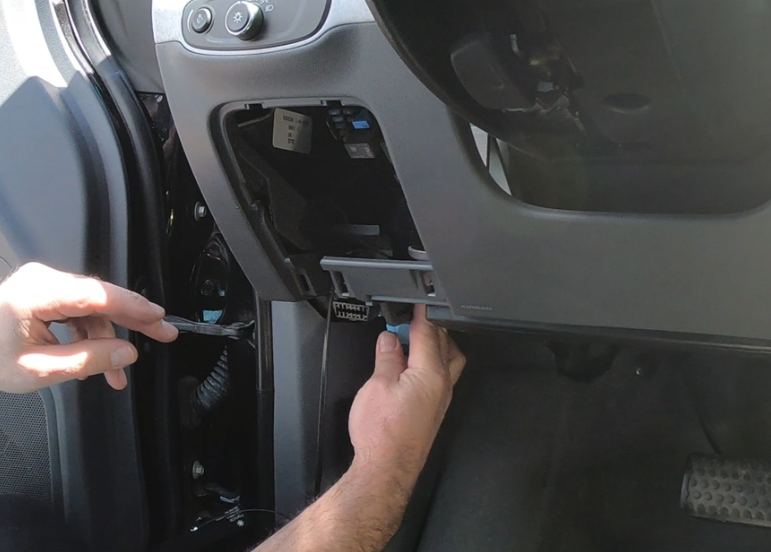

4. Reinstall Blue Plug

Push the free end of the connector cable back

into the block and stow the cable away

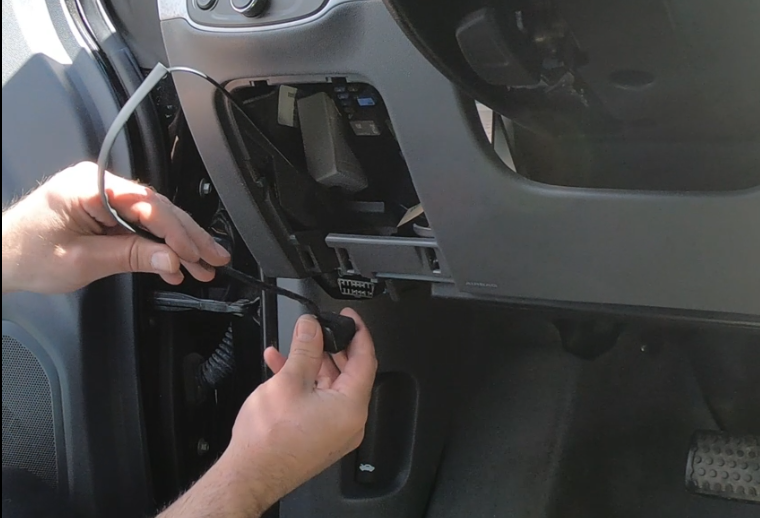

5. OBD Connector

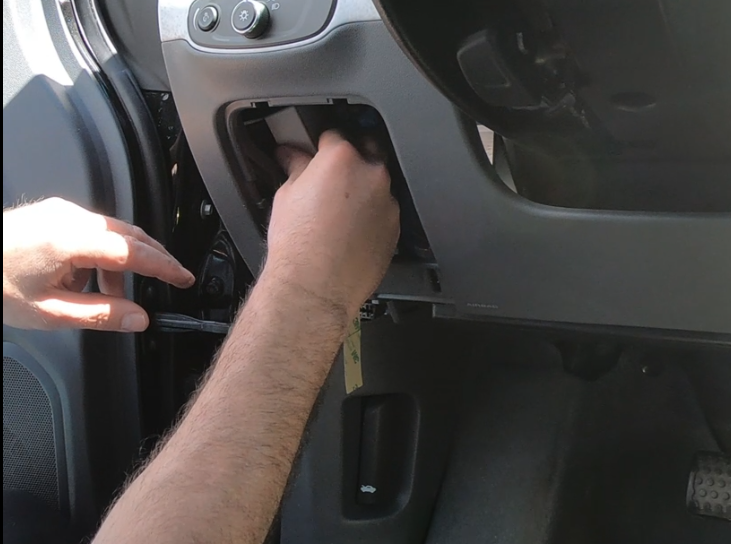

Place the module on the LH side of the dash and store

the antenna away. Then, plug the OBD connector in

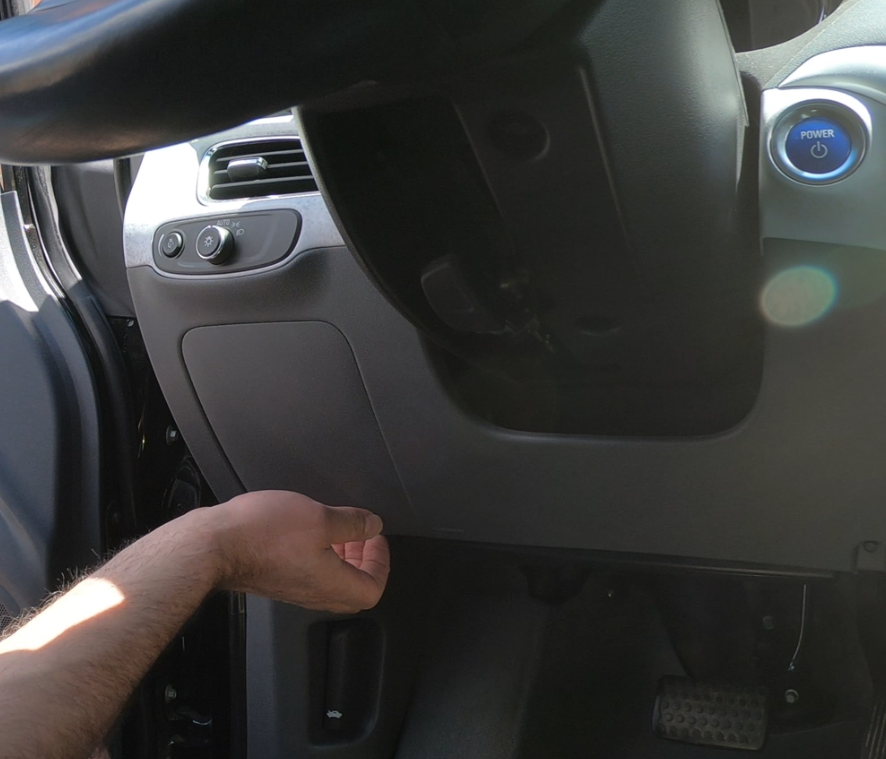

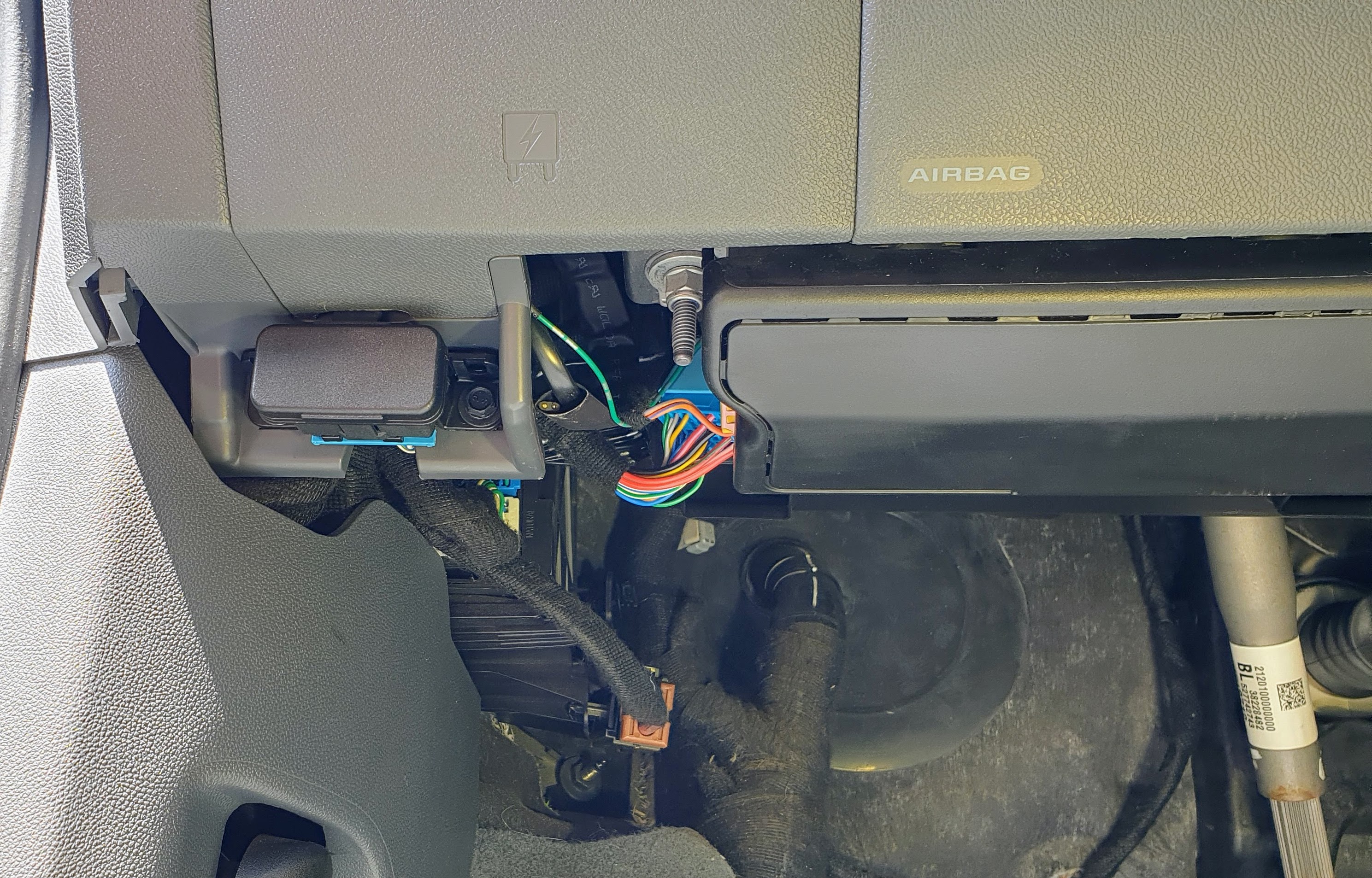

6. Finish

The final installation should look something like this, before you put the, slightly adjusted, fuse box cover back on
